# Radio test with two ATC-863-S1 (RS 232)

**Requirements:**



**Software**

Windows XP or greater

[RF module Software](https://gridconnect.box.com/shared/static/qekvhx1zxdn0khz4f6hw2lw63kzxtyz4.zip)



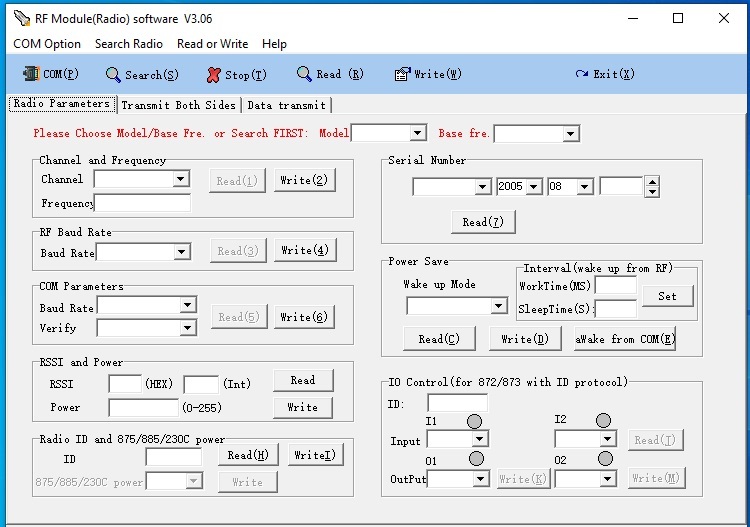

![](https://support.gridconnect.com/hubfs/kb-migration/gridconnect/28517278291603_28517278291603.jpeg)

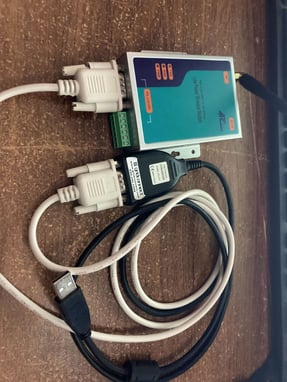

**Hardware**



Two ATC-863-S1

Two DB9 female cables (included)

Two power supply 9VDC 200mA (included)

Two ATC-810 (USB to RS-232 adapter)

![](https://support.gridconnect.com/hs-fs/hubfs/kb-migration/gridconnect/28517278307859_28517278307859.jpeg?width=287&height=382&name=28517278307859_28517278307859.jpeg)



**Main Procedure**

**Connect to ATC-863 using RF module software.**



1. Go to the device manager on your PC and check what port is assigned.

![](https://support.gridconnect.com/hs-fs/hubfs/kb-migration/gridconnect/28517278311699_28517278311699.jpeg?height=120&name=28517278311699_28517278311699.jpeg)

1. Open the “**COM Option**” and click the “**COM Set**” button on the software toolbar.

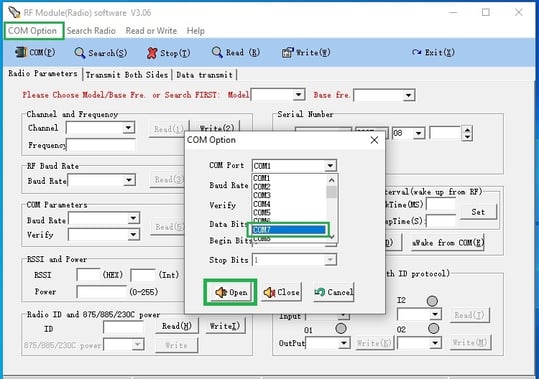

2. Choose “**COM Port**” from the drop-down menu and click the “**Open**” button.

Note: In this menu, you will select the COM Port assigned on the device manager (COM7 in this example)
![](https://support.gridconnect.com/hs-fs/hubfs/kb-migration/gridconnect/28517289125907_28517289125907.jpeg?width=539&name=28517289125907_28517289125907.jpeg)

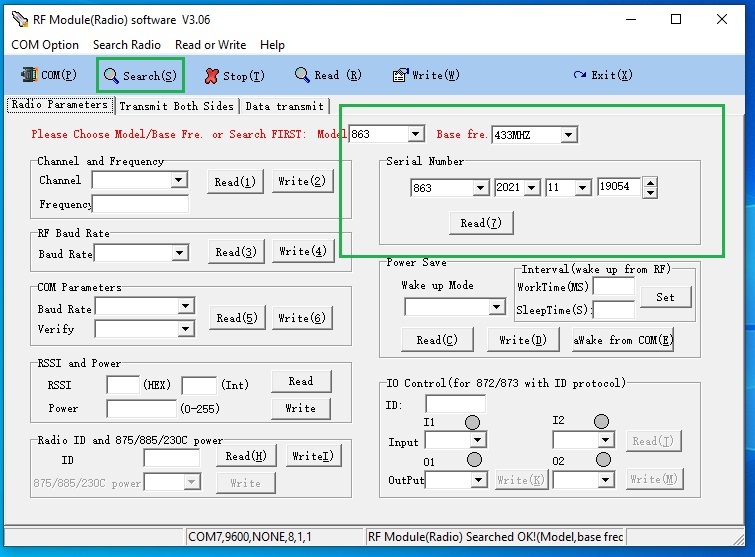

1. Click “**Search**” on the Toolbar. The software will “begin the Search.” If a signal radio is detected, the Status bar will indicate “successful search” and display device information. If not, the system will indicate “can’t search”. Thus, you should follow the next troubleshooting:

1. Check the power or data line,
2. The interface is RS232 or has been changed to RS232.

Once the previous troubleshooting has been done, click the “**Search**” button to begin the search again.

![](https://support.gridconnect.com/hubfs/kb-migration/gridconnect/28517278320275_28517278320275.jpeg)

Note: We suggest “Search Radio” before setting the RF module/radio parameters. Once the Search is successful, don’t change the properties of the COM again.

**Getting ATC’s Values**

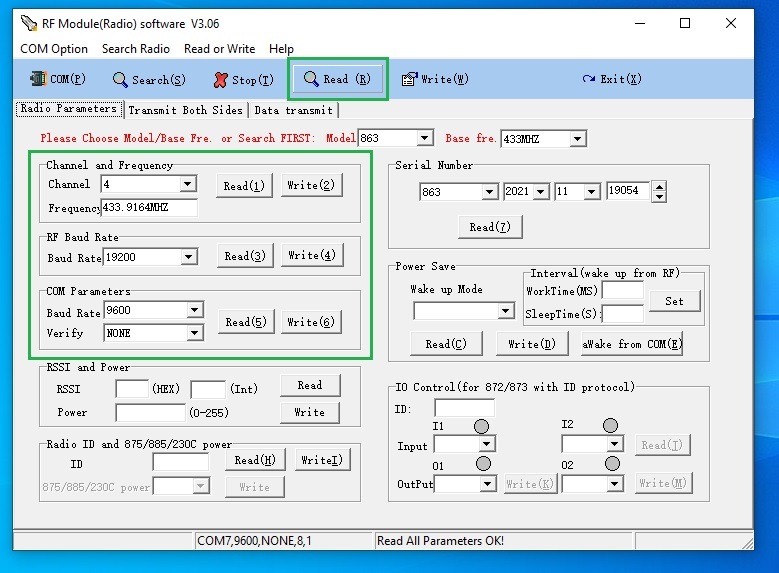

1. To get the ATC-863's default settings, click on the **Read** button. This will show the device’s parameters for setting up any radio device you need to talk to.

![](https://support.gridconnect.com/hubfs/kb-migration/gridconnect/28517289131667_28517289131667.jpeg)

1. The device parameters can also be set according to any particular needs by setting them individually.

1. **Channel and frequency**
   ![](https://support.gridconnect.com/hs-fs/hubfs/kb-migration/gridconnect/28517289134483_28517289134483.png?width=289&height=101&name=28517289134483_28517289134483.png)
2. **RF Baud Rate**

![](https://support.gridconnect.com/hs-fs/hubfs/kb-migration/gridconnect/28517278326419_28517278326419.png?width=288&height=104&name=28517278326419_28517278326419.png)

  c) **COM Parameters**

![](https://support.gridconnect.com/hs-fs/hubfs/kb-migration/gridconnect/28517278327827_28517278327827.png?width=287&height=81&name=28517278327827_28517278327827.png)

**Connecting the second ATC-863-S1 to the RF Module Software**

1. Connect the second ATC-863 to a USB port, then **go to** the device manager and check the “COM” available.

![](https://support.gridconnect.com/hs-fs/hubfs/kb-migration/gridconnect/28517278328851_28517278328851.jpeg?width=574&height=67&name=28517278328851_28517278328851.jpeg)

1. Open a second RF module Software.
2. Click on the “**COM option”** then click on “**COM Set”**

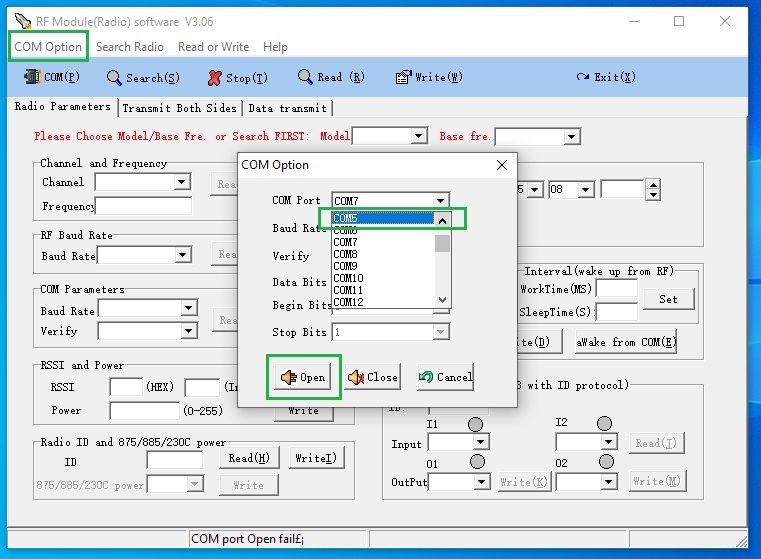

3. On the next window for “*COM Port”.* Select the COM Port available on the device manager (COM5 in this case), then click “**Open”**

![](https://support.gridconnect.com/hubfs/kb-migration/gridconnect/28517278330131_28517278330131.jpeg)

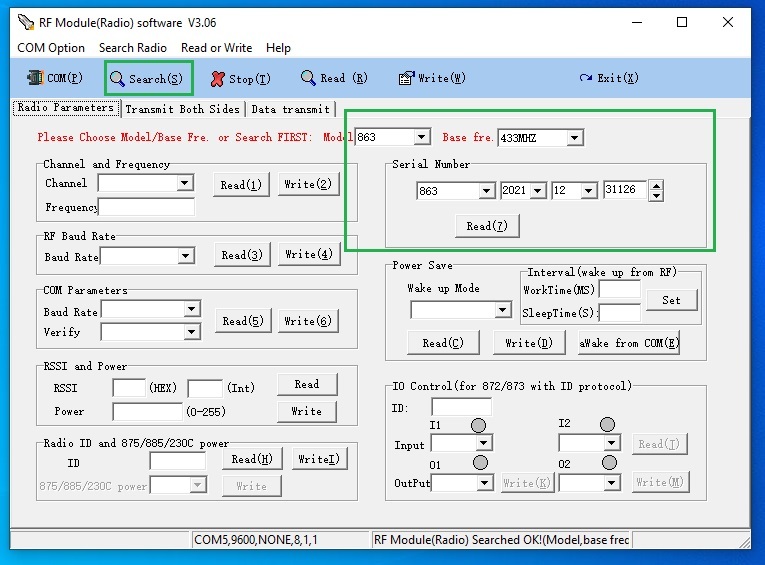

1. Click **Search** to get the information from the second ATC-863 (COM5).

![](https://support.gridconnect.com/hubfs/kb-migration/gridconnect/28517278338835_28517278338835.jpeg)

**Match the first ATC-863 (COM7) parameters**

**Manually Set: **

1. **Channel and Frequency** to Channel 4 with a frequency of 433.916MHZ (the frequency is populated by default when you choose the channel). Once you select the Channel, ***it is essential to*** *click on the Write(2) button* ***to save the changes.***
2. **RF Baud Rate** to 19200, then *click on the Write(2) button *
3. **COM parameters** to

- Baud Rate: 9600
- Verify: NONE. Then *click on the Write(2) button*

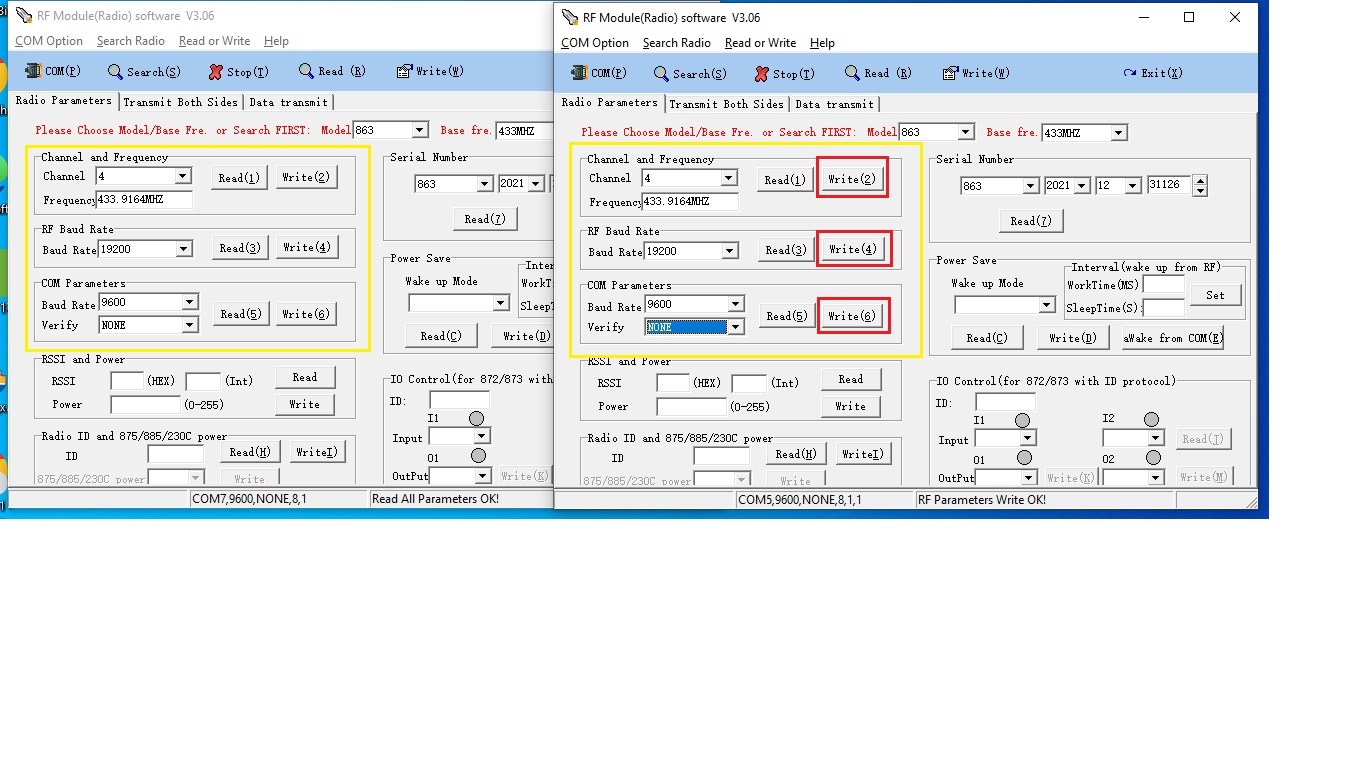

**![](https://support.gridconnect.com/hubfs/kb-migration/gridconnect/28517278340499_28517278340499.jpeg)**

Note: Here, you can set the ATC-863 to match your device parameters or set your device to match the ATC-863 default settings. These parameters have to be the same for both devices to establish a connection.



**Steps to make the radio test **

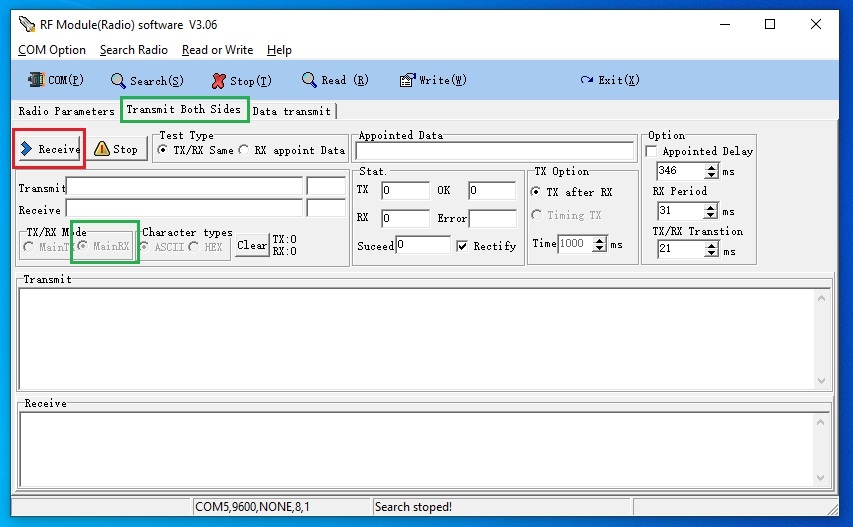

1. **Set the Main RX:**

1. Choose the primary receiving side by going to the “**Transmit Both Sides**” tab of the software,
2. Select “**Main RX**”, and click the “**receive**” button to enable the receiving status.

In the “**TX option**,” we can choose “*TX after Return*” or “*Timing TX*.” The **“TX after Return”** means it can transmit the data after receiving it from the main transmitting side, while the **“Timing TX”** means transmitting the data at a set time.

Note: the TX Option is set to “TX after Return” by default.

![](https://support.gridconnect.com/hubfs/kb-migration/gridconnect/28517278347027_28517278347027.jpeg)

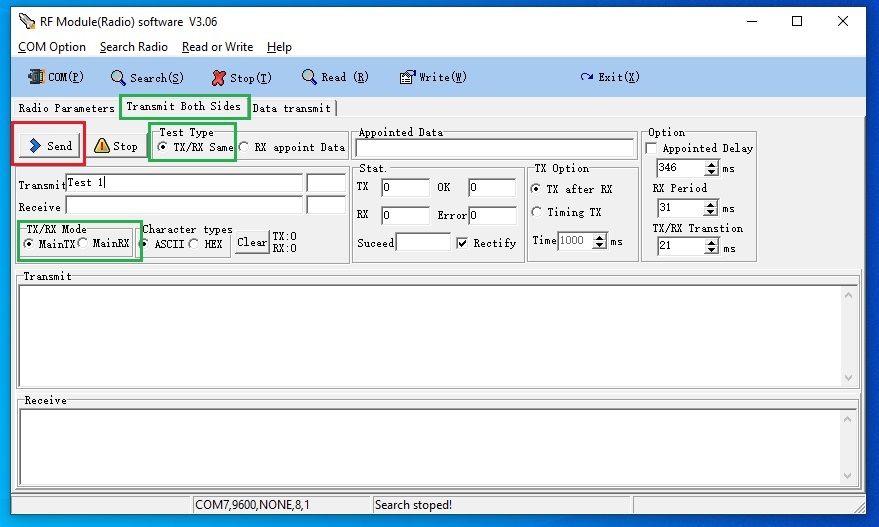

1. **Set Main TX**

To send Data to the second ATC-863 (COM5)

- On the first ATC-863 (COM7), Make sure you move to the “**Transmit Both Sides**” tab.
- Then “**Main TX**”, and input the content in the Textbox, click “**Send**”

![](https://support.gridconnect.com/hubfs/kb-migration/gridconnect/28517278350739_28517278350739.jpeg)

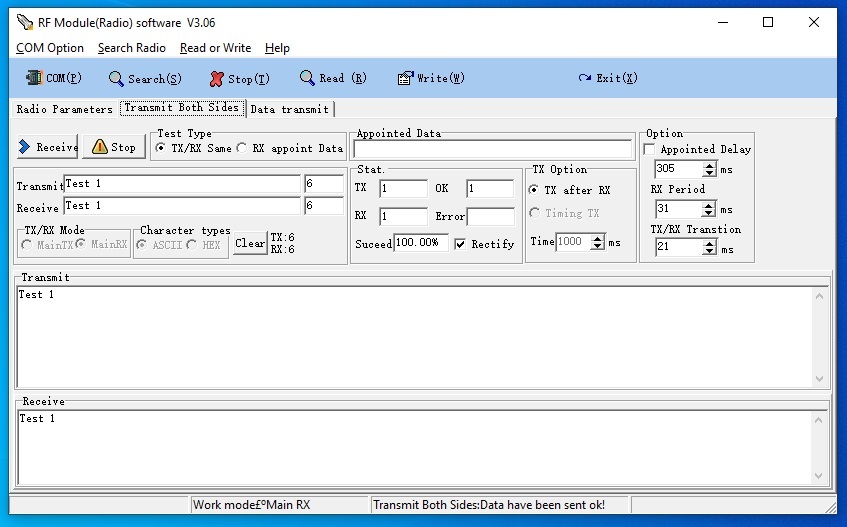

**Test results**

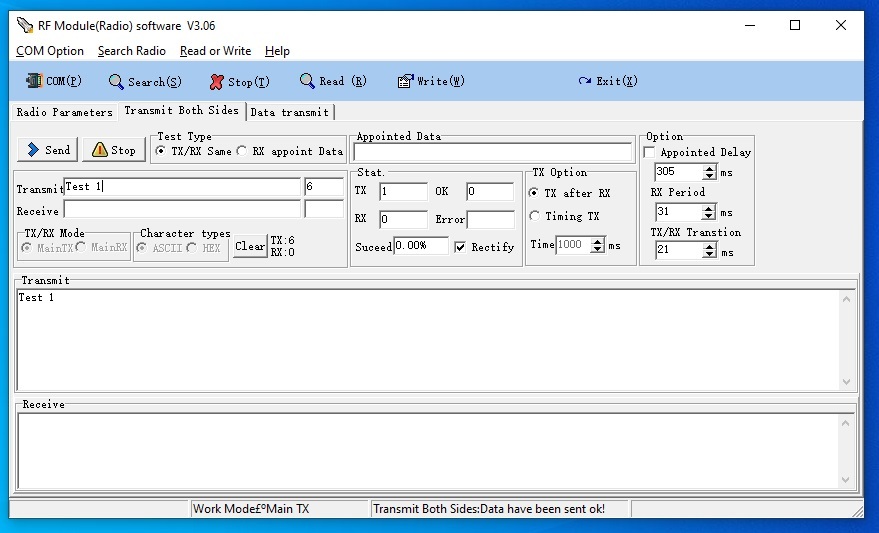

![](https://support.gridconnect.com/hubfs/kb-migration/gridconnect/28517278354835_28517278354835.jpeg)

![](https://support.gridconnect.com/hubfs/kb-migration/gridconnect/28517278356499_28517278356499.jpeg)
