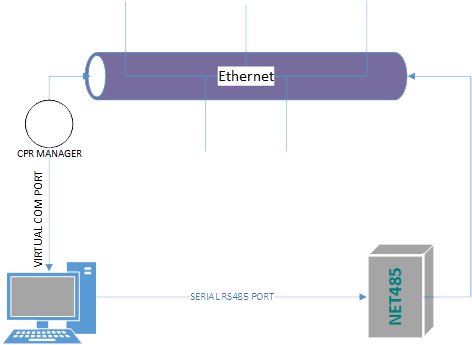

--- title: Tunnel Testing one (1) NET485 Device with CPR Manager description: "This testing method is needed whenever you lose connectivity on your network. To perform the test you will need: Equipment Requirements Net485 Device..." --- [Skip to content](https://support.gridconnect.com/grid-connect/tunnel-testing-one-1-net485-device-with-cpr-manager#main-content) [Submit a ticket](https://support.gridconnect.com/grid-connect/kb-tickets/new?hsLang=en) ![Grid Connect](https://support.gridconnect.com/hubfs/GridConnect_FullColorLogo-2024.svg) Open main navigation Close main navigation - [Submit a ticket](https://support.gridconnect.com/grid-connect/kb-tickets/new) How can we help you? - There are no suggestions because the search field is empty. 1. [Grid Connect](https://support.gridconnect.com/grid-connect?hsLang=en) 2. [Grid Connect Products](https://support.gridconnect.com/grid-connect/grid-connect-products?hsLang=en) 3. [NET485-01](https://support.gridconnect.com/grid-connect/grid-connect-products?hsLang=en#net485-01) # Tunnel Testing one (1) NET485 Device with CPR Manager This testing method is needed whenever you lose connectivity on your network. To perform the test you will need: ### Equipment Requirements Net485 Device Power adapter (included on every purchase) [ATC820 serial to USB adapter](https://www.gridconnect.com/products/atc-820-usb-to-rs485-converter) Ethernet cable. ![NET485.png](https://support.gridconnect.com/hubfs/kb-migration/gridconnect/8946340080147_NET485.png) ### System Requirements Windows OS CPR manager Device Installer Tera Term or any other terminal emulation software --- Start by installing the proper software such as DeviceInstaller, and Tera Term. ### **Downloads** --- Open up CPR MANAGER to create a virtual COM Port, by clicking on Add/Remove ![1.PNG](https://support.gridconnect.com/hubfs/kb-migration/gridconnect/8947000906131_1.png) A new screen with available COM Ports will appear, select one to create a new COM PORT. For this example, we will go with COM1 and then click Ok. ![2.PNG](https://support.gridconnect.com/hubfs/kb-migration/gridconnect/8947180575891_2.png) On this next screen we will do the following: 1. Click on search devices 2. Select the COM Port created (Com 1) 3. Double-click the IP address on the bottom. The information will be imported automatically to the settings tab both the IP Address and the TCP port, then click on the save option for all changes to be saved for the new Com1 created. ![mceclip0.png](https://support.gridconnect.com/hubfs/kb-migration/gridconnect/8947262867731_mceclip0.png) You may encounter problems connecting the device, you can fix some issues by clicking on this button and fixing both the port and firewall issues. ![mceclip1.png](https://support.gridconnect.com/hs-fs/hubfs/kb-migration/gridconnect/8947533249683_mceclip1.png?width=364&height=173&name=8947533249683_mceclip1.png) ![mceclip2.png](https://support.gridconnect.com/hs-fs/hubfs/kb-migration/gridconnect/8947523315475_mceclip2.png?width=364&height=173&name=8947523315475_mceclip2.png) It is good practice for you to test the recently created COM Port by selecting the Com 1 test ![4.PNG](https://support.gridconnect.com/hubfs/kb-migration/gridconnect/8947862856083_4.png) --- ### Lantronix Device Installer Setup If you cannot see the device under Lantronix Devices, make sure you are using the proper network adapter. In this case, you can see Wi-Fi being selected, we need to change that in order to test the device via Ethernet. ![Port\_2.PNG](https://support.gridconnect.com/hubfs/kb-migration/gridconnect/22196056156947_22196056156947.png) Click on Tools then select Options  ![Port\_3.PNG](https://support.gridconnect.com/hubfs/kb-migration/gridconnect/22196044289043_22196044289043.png) On the options window, select Ethernet, then save changes. ![Port\_1.PNG](https://support.gridconnect.com/hubfs/kb-migration/gridconnect/22196044295315_22196044295315.png) Ethernet will be detected as an XPort Device if done correctly. If the device is still not found within DeviceInstaller, please follow the steps in [this article.](https://gridconnect.zendesk.com/hc/en-us/articles/115009606907-Cannot-find-device-in-Device-Installer-search) --- Once we are sure everything is set up we recommend checking they are properly installed by using Windows "Device Manager"  ![mceclip0.png](https://support.gridconnect.com/hubfs/kb-migration/gridconnect/8988221920787_mceclip0.png) \*Experiences may vary due to Windows installations, in some cases you may need Drivers. --- ### Tera Term or another terminal emulator Open up a Tera Term session and select the first COM port available. In this case COM1![10.PNG](https://support.gridconnect.com/hubfs/kb-migration/gridconnect/8988612965267_10.png) Once that Window connects open up a new session and choose the remaining COM port that you created COM5 in this case. ![11.PNG](https://support.gridconnect.com/hubfs/kb-migration/gridconnect/8988660195347_11.png) If everything is working properly, they both should talk to each other from COM1 to COM5 ![12.PNG](https://support.gridconnect.com/hubfs/kb-migration/gridconnect/8988708282771_12.png) - [Grid Connect Products](https://support.gridconnect.com/grid-connect/grid-connect-products?hsLang=en#main-content) - [Device Installer](https://support.gridconnect.com/grid-connect/grid-connect-products?hsLang=en#device-installer) - [Com Port](https://support.gridconnect.com/grid-connect/grid-connect-products?hsLang=en#com-port) - [GRIDBluFly](https://support.gridconnect.com/grid-connect/grid-connect-products?hsLang=en#gridblufly) - [NET485-01](https://support.gridconnect.com/grid-connect/grid-connect-products?hsLang=en#net485-01) - [Serial to Ethernet](https://support.gridconnect.com/grid-connect/grid-connect-products?hsLang=en#serial-to-ethernet) - [Serial over Bluetooth](https://support.gridconnect.com/grid-connect/grid-connect-products?hsLang=en#serial-over-bluetooth) - [xPort](https://support.gridconnect.com/grid-connect/grid-connect-products?hsLang=en#xport) - [CAN](https://support.gridconnect.com/grid-connect/grid-connect-products?hsLang=en#can) - [NET485-MB](https://support.gridconnect.com/grid-connect/grid-connect-products?hsLang=en#net485-mb) - [WI232+](https://support.gridconnect.com/grid-connect/grid-connect-products?hsLang=en#wi232) - [NET232+](https://support.gridconnect.com/grid-connect/grid-connect-products?hsLang=en#net232) - [Testing and Evaluation](https://support.gridconnect.com/grid-connect/grid-connect-products?hsLang=en#testing-and-evaluation) - [Distributed Vendors](https://support.gridconnect.com/grid-connect/distributed-vendors?hsLang=en#main-content) - [AKCP](https://support.gridconnect.com/grid-connect/distributed-vendors?hsLang=en#akcp) - [ATC](https://support.gridconnect.com/grid-connect/distributed-vendors?hsLang=en#atc) - [Chiyu](https://support.gridconnect.com/grid-connect/distributed-vendors?hsLang=en#chiyu) - [Deutschmann Automation](https://support.gridconnect.com/grid-connect/distributed-vendors?hsLang=en#deutschmann-automation) - [Equustek](https://support.gridconnect.com/grid-connect/distributed-vendors?hsLang=en#equustek) - [PEAK System](https://support.gridconnect.com/grid-connect/distributed-vendors?hsLang=en#peak-system) - [Profichip](https://support.gridconnect.com/grid-connect/distributed-vendors?hsLang=en#profichip) - [Zcomax](https://support.gridconnect.com/grid-connect/distributed-vendors?hsLang=en#zcomax) - [Procentec](https://support.gridconnect.com/grid-connect/distributed-vendors?hsLang=en#procentec) - [Contemporary Controls](https://support.gridconnect.com/grid-connect/distributed-vendors?hsLang=en#contemporary-controls) - [General](https://support.gridconnect.com/grid-connect/general?hsLang=en#main-content) - [FAQ](https://support.gridconnect.com/grid-connect/general?hsLang=en#faq) - [RS232](https://support.gridconnect.com/grid-connect/general?hsLang=en#rs232) - [Support](https://support.gridconnect.com/grid-connect/support?hsLang=en#main-content) - [How To guides](https://support.gridconnect.com/grid-connect/support?hsLang=en#how-to-guides) - [FAQs](https://support.gridconnect.com/grid-connect/support?hsLang=en#faqs) - [Troubleshooting](https://support.gridconnect.com/grid-connect/support?hsLang=en#troubleshooting) [![Grid Connect](https://support.gridconnect.com/hubfs/GridConnect_FullColorLogo-2024.svg "Grid Connect")](https://www.gridconnect.com/) Copyright © 2026, Grid Connect
